Bicycle Testing

aaaa
Satisfies EUROPEAN STANDARD EN 14764
City and trekking bicycles test equipment



This Equipments meets European Standard specifies safety and performance requirements for testing of bicycles and sub-assemblies intended for use on public roads, and lays down guide lines for instructions on the use and care of such bicycles.
This European Standard applies to bicycles that have a maximum saddle height of 635 mm or more and that are intended for use on public roads.
l  NOTE For bicycles with a maximum saddle height of 435 mm see EN 71 and with a maximum saddle height of more than 435 mm and less than 635 mm see EN 14765.



1.  UTM


Specime to be mounted on T-slot Base Plate with grip or JIG. Perform energy est by actuating vertical force on specimen.


  • Electric Servo Actuator
  • Loadcell
  • Fixture
  • Controller
  • Specifications
Constructions

  •
  • T Slot Table(2000X900mm size)
    • Test Bed Plate:Speed : 0.01 ~ 500 mm/minMax Stroke: 1500 mmAccuracy : ± 0.3 %Resolution: 0.1kNLad



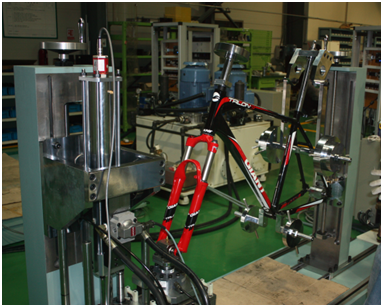

    2.  1 Axis Fatiigue Test



    Hydraulic Pump and Hydraulic Servo Valve shoud actuate to specimen dynamically at 1~ 40Hz with Digital Servo Controller which control actuator in a PID control methds.

    Constructions
        T-slot Base Plate
           Specin Mounting and Traverse Stand
           Servo Actuator Mounting and traverse      Stand
    •     Hydraulic Servo Actuator
    •     Hydraulic Pump Unit
    •     Controller

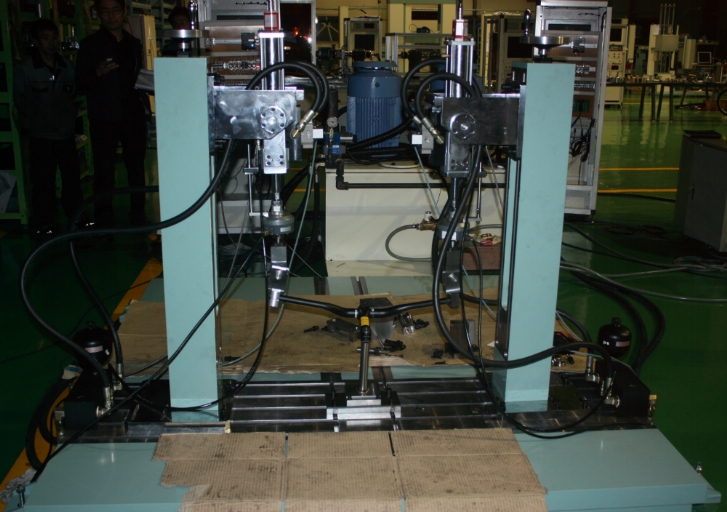

     3.  2 Axis Fatiigue Test




           Constructions

         T-slot Base Plate
    Specimen Mounting and Traverse Stand
    Hydraulic Servo Actuator Mounting and Traverse Stand
    Hydraulic Servo Actuator

    Controller

    Hydraulic Pump Unit






     4.  Drop Impact Test




     5.  Wheel Test



































    6.  Torsion Test

















    8.  JIG and Fixture

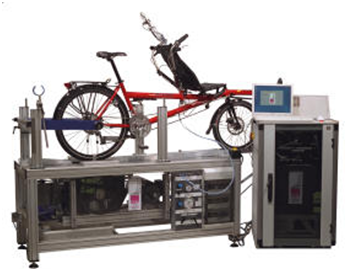

    9.  Brake Test

         Shasis Dynamometer
    Capacity: 100 kN
